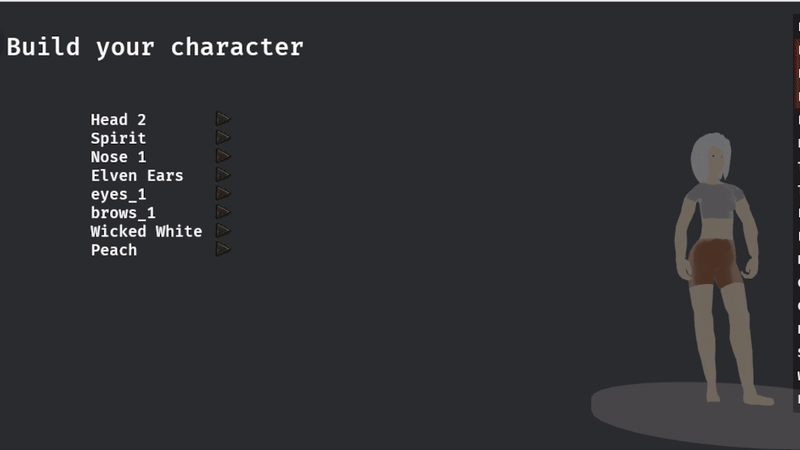

In this blog post I will explain how I built the horizontal selection picker component in my ui.
This is how simple it is to define a horizontal choice picker. As you can see, it only takes about 10 lines of code to define it. I just have to use the bevy_hammer_ui builder pattern for the picker and then in the inner function I have to spawn selectable choices as children, each of them having a boxed Event. That event is output whenever the selector component selects that entry. Simple!
let hair_color_choices = vec![
(
ChoicePreviewType::TextLabel( "Storm Gray".to_string() ),
SelectCharacterAppearanceEvent:: SelectAppearanceColorTint( AppearanceColorSlotType::Hair, "StormGray".into() )
) ,
(
ChoicePreviewType::TextLabel( "Peach".to_string() ),
SelectCharacterAppearanceEvent:: SelectAppearanceColorTint( AppearanceColorSlotType::Hair, "Peach".into() )
),
(
ChoicePreviewType::TextLabel( "Autumn".to_string() ),
SelectCharacterAppearanceEvent:: SelectAppearanceColorTint( AppearanceColorSlotType::Hair, "Autumn".into() )
),
];
inner.horizontal_choice_picker(
|choice_root| {
for c in hair_color_choices {
//when this choice is selected, this event is output. !
choice_root.selectable_choice (
c.0, //select label
Box::new( SelectableChoiceWithEventOutput { event: c.1.clone() } //event to output on select
)
) ;
}
}
);
This is the widget code for the horizontal choice picker, again using vanilla Bevy Ui and the extremely minimal framework bevy_hammer_ui.
use std::any::Any;
use crate::ui::components::button_interact_component::ButtonInteractionTriggerOutput;
use crate::ui::prefabs::hoverable_button::HoverableButtonConfig;
use crate::ui::components::button_interact_component::ButtonPressInteractComponent;
use crate::ui::components::button_interact_component::ButtonInteractionEventOutput;
use crate::ui::prefabs::container::UiContainerExt;
use crate::ui::prefabs::label_widget::LabelConfig;
use crate::ui::prefabs::label_widget::UiLabelExt;
use crate::ui::ui_extensions::SetLabelTextCustomExt;
use crate::ui::ui_extensions::SetUiFontExt;
use crate::ui::ui_styles::*;
use bevy_hammer_ui::style::UiStyleExt;
use bevy_hammer_ui::ui_builder::UiBuilder;
use crate::ui::ui_extensions::SetUiTextureImageExt;
use bevy::prelude::*;
use super::hoverable_button::UiHoverableButtonExt;
use bevy::utils::HashMap;
/*
TODO:
allow for multiple choices (only render the selected one)
make the arrows look better
implement SelectedChoiceRenderPreview
*/
pub(crate) fn horizontal_choice_picker_plugin(app: &mut App) {
app
.add_event::< ChoicePickerEvent >()
.add_event::< ChoiceSelected >()
.add_observer( handle_choice_picker_event_triggers )
.add_observer( handle_choice_selected )
.add_systems( Update ,
(
register_updated_children ,
handle_choice_picker_selection_updated,
update_render_preview,
) .chain ()
)
;
}
#[derive(Event,Clone,Debug )]
enum ChoicePickerEvent {
IncrementChoice(usize) ,
}
#[derive(Event,Clone,Debug )]
struct ChoiceSelected ; //trigger on the choice
#[derive(Component) ]
struct ChoicesRootNode;
#[derive(Component) ]
struct SelectedChoiceRenderPreview;
#[derive(Component,Default )]
pub struct HorizontalChoicePicker {
pub registered_choices: HashMap< usize, Entity >,
pub selected_choice_index: usize //starts at 0
}
impl HorizontalChoicePicker {
pub fn increment_index(&mut self, increment: usize) {
if !self.registered_choices.is_empty() {
self.selected_choice_index =
(self.selected_choice_index + increment) % self.registered_choices.len();
}
}
pub fn get_current_selection(&self) -> Option<&Entity> {
self.registered_choices.get( &self.selected_choice_index )
}
}
//attach these as children
#[derive(Component)]
pub struct SelectableChoice {
// pub label: String,
pub output: Box< dyn SelectableChoiceOutputExt + Send + Sync + 'static >
}
#[derive(Component,Clone,Debug)]
pub enum ChoicePreviewType{
TextLabel (String) ,
Color( Color) ,
}
fn get_text_render_bundle( label_text: &String ) -> impl Bundle {
return (
Visibility::default(),
Text::new(label_text)
)
}
fn get_color_render_bundle( color: &Color) -> impl Bundle {
return (
Visibility::default(),
Node {
min_width: Val::Px( 20.0 ),
min_height: Val::Px( 20.0 ),
..default()
},
BackgroundColor ( *color ),
)
}
#[derive(Component)]
pub struct ChoiceRenderPreviewLink ( Entity ) ;
pub trait SelectableChoiceExt {
fn selectable_choice (
&mut self,
choice_preview: ChoicePreviewType,
output: Box< dyn SelectableChoiceOutputExt + Send + Sync + 'static >
) -> UiBuilder<Entity>;
}
impl SelectableChoiceExt for UiBuilder<'_, Entity> {
fn selectable_choice (
&mut self,
choice_preview: ChoicePreviewType,
output: Box< dyn SelectableChoiceOutputExt + Send + Sync + 'static >
) -> UiBuilder<Entity> {
let ui_builder = self.spawn(
(
Name::new( format!( "selectable choice " )),
SelectableChoice {
output
},
choice_preview.clone(),
// Text::new( label.to_string() )
)
) ;
ui_builder
}
}
pub trait SelectableChoiceOutputExt {
fn on_choice_selected(&self, commands: &mut Commands , _interacted_entity: &Entity );
}
/// When the choice is selected, this generic event T will be emitted
pub struct SelectableChoiceWithEventOutput<T>
where
T: Event + Clone, // Ensure T can be used as an Event and is Cloneable
{
pub event: T,
}
impl<T> SelectableChoiceOutputExt for SelectableChoiceWithEventOutput<T>
where
T: Event + Clone,
{
fn on_choice_selected(&self, commands: &mut Commands, _interacted_entity: &Entity) {
let event_to_emit = &self.event;
let event_cloned = event_to_emit.clone();
commands.send_event(event_cloned);
}
}
pub trait UiHorizontalChoicePickerExt {
fn horizontal_choice_picker (
&mut self,
// bundle: impl Bundle,
spawn_children: impl FnOnce(&mut UiBuilder<Entity>),
) -> UiBuilder<Entity>;
}
impl UiHorizontalChoicePickerExt for UiBuilder<'_, Entity> {
fn horizontal_choice_picker (
&mut self,
// bundle: impl Bundle,
spawn_choices: impl FnOnce(&mut UiBuilder<Entity>),
) -> UiBuilder<Entity> {
self.container( (
Node {
display: Display::Flex,
flex_direction: FlexDirection::Row, // Set direction to column for vertical layout
justify_content: JustifyContent::FlexStart, // Adjust main axis distribution as needed
align_items: AlignItems::FlexStart, // Adjust cross axis alignment as needed (center, flex-end, etc.)
..default()
},
HorizontalChoicePicker::default(),
Name::new("choice picker") ,
), |inner| {
let picker_entity_id = inner.id();
//This gets modulated !
let render_choice_preview = inner.spawn( (
Node {
margin: UiRect::horizontal( Val::Px( 8.0 )),
padding: UiRect::horizontal( Val::Px( 8.0 )) ,
min_width: Val::Px( 160.0 ),
..default()
},
Visibility::default() ,
SelectedChoiceRenderPreview ,
) ).id() ;
inner.insert( ChoiceRenderPreviewLink( render_choice_preview ) );
//is this a good way to do it ?
let choices_root_entity = inner.container(
(
Visibility::Hidden ,
ChoicesRootNode ,
),
spawn_choices
);
inner.hoverable_button( HoverableButtonConfig {
bg_texture: Some( "crusader_arrow_iron.png".to_string() ) ,
max_dimensions: Vec2 ::new( 22.0, 22.0 ),
label: None ,
} )
.insert(
ButtonPressInteractComponent(Some(Box::new(
ButtonInteractionTriggerOutput {
event_trigger: ChoicePickerEvent::IncrementChoice( 1 ),
target_entity: Some( picker_entity_id )
},
)))
)
;
})
}
}
fn register_updated_children(
choices_root_node_query: Query< (Entity, &Children, &Parent) , (With<ChoicesRootNode> , Changed<Children>) > ,
mut picker_query: Query< &mut HorizontalChoicePicker >
) {
for (choices_root_entity, children, parent) in choices_root_node_query.iter(){
let picker_parent = parent.get();
let Some( mut choice_picker) = picker_query.get_mut( picker_parent ).ok() else {
warn!("choices root node children changed but parent was invalid" );
continue
};
let mut new_hashmap = HashMap::new();
for (i, child) in children.into_iter().enumerate() {
new_hashmap.insert(i , *child) ;
}
info!( "updated picker hashmap {:?}" , new_hashmap );
choice_picker.registered_choices = new_hashmap;
choice_picker.selected_choice_index = 0;
}
}
fn handle_choice_picker_event_triggers(
trigger: Trigger< ChoicePickerEvent >,
mut choice_picker_query: Query< &mut HorizontalChoicePicker >
){
let entity = trigger.entity();
let evt = trigger.event();
info!("choice picker event ! {:?} {} ", evt , entity );
if let Some( mut choice_picker ) = choice_picker_query.get_mut( entity ).ok() {
match evt {
ChoicePickerEvent::IncrementChoice(delta) => choice_picker.increment_index( *delta ) ,
}
}
}
fn handle_choice_picker_selection_updated(
mut commands:Commands ,
choice_picker_query: Query< & HorizontalChoicePicker , Changed<HorizontalChoicePicker> >
){
for choice_picker in choice_picker_query.iter(){
if let Some( currently_selected_choice) = choice_picker.get_current_selection() {
info!("choice selected 1! {} ", currently_selected_choice);
commands.trigger_targets( ChoiceSelected , * currently_selected_choice );
}
}
}
fn handle_choice_selected( // this is not working ..
trigger: Trigger<ChoiceSelected> ,
choice_query: Query< (Entity, &SelectableChoice ) >,
mut commands: Commands,
){
let Some((choice_entity, choice)) = choice_query.get( trigger.entity() ) .ok() else {
warn!( "handle choice selected failed: the triggered entity doesnt have SelectableChoice ");
return
} ;
let choice_output = &choice.output;
info!( "choice selected 2: {} " , &choice_entity );
choice_output.on_choice_selected(&mut commands, &choice_entity);
}
fn update_render_preview(
mut commands:Commands ,
choice_picker_query: Query< (& ChoiceRenderPreviewLink, &HorizontalChoicePicker) , Changed<HorizontalChoicePicker> >,
selection_query: Query< &ChoicePreviewType >
){
for (render_preview_link , choice_picker ) in choice_picker_query.iter(){
let render_preview_entity = render_preview_link.0;
if let Some( currently_selected_choice_entity ) = choice_picker.get_current_selection() {
if let Some( choice_preview ) = selection_query.get( *currently_selected_choice_entity ).ok() {
if let Some(mut cmd) = commands.get_entity(render_preview_entity) {
cmd.despawn_descendants() ;
match choice_preview {
ChoicePreviewType::TextLabel(label) => {
cmd.with_child(
get_text_render_bundle (label)
);
},
ChoicePreviewType::Color(color) => {
cmd.with_child(
get_color_render_bundle(color)
);
},
} ;
}
}
// commands.trigger_targets( ChoiceSelected , * currently_selected_choice );
}
}
}
So as you can see, the general idea here is each choice is a 'child entity' which gets spawned under the hidden 'ChoicesRootNode' which is a child of the selection picker container.
When the arrow button is clicked, that triggers an Increment event on the horizontal picker which mutates its selection index . As that mutates, the 'choice render preview' is updated to render the render_data of the currently selected choice entity and when this occurs, the event corresponding to that selection choice is emitted as well.
And that is it !
Extras
Here is button press interact component if you would like to see how I build the button:
https://gist.github.com/ethereumdegen/7d542ca7a825960807f79e1a898020f0
